Printed Circuit Board Receptacles

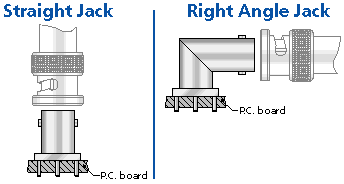

Contact and legs are soldered to plated-through holes in printed-circuit board. Also available with plug interface.

Right angle types are used in applications requiring a low profile, or to avoid bending cable.
